500-1500 Tph Crawler Type Self-feeding Mobile Conveyor

This self-feeding mobile conveyor achieves a qualitative leap in on-site working efficiency and labor cost control. It completely saves the matching operation of large mechanical equipment and auxiliary workers, realizingone-person remote automatic loading.

inquire for Best Price now !
WhatsApp

Product Introduction

500-1500 Tph Crawler Type Self-feeding Mobile Conveyor

1. Equipment Overview

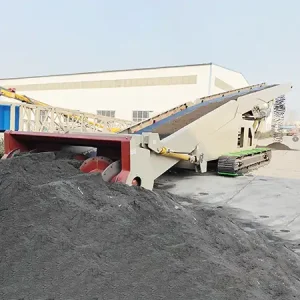

Self-feeding truck loader-11

This mobile bulk material self-feeding conveyor adopts a crawler traveling chassis integrated with screw reclaiming, hydraulic lifting, belt conveying, PLC frequency conversion control and other functions. Featuring high reclaiming efficiency, flexible movement, convenient operation and high automation, the equipment is manufactured with Q355 steel, NM500 wear-resistant steel and other wear-resistant structural materials. Key components adopt well-known domestic and foreign brands to ensure reliable performance and long service life.

The equipment consists of six core modules: screw reclaiming mechanism, belt conveying mechanism, traveling bearing mechanism, hydraulic system, control system and safety protection system. Modular design facilitates installation, maintenance and overhaul, making it applicable to bulk material handling in stockyards, docks, factories and other working sites.

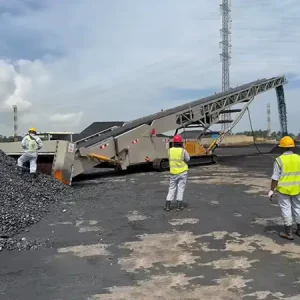

Self-feeding truck loading mobile conveyor

2. Main Technical Parameters

2.1 Core Performance Parameters

Parameter Name Technical Index Parameter Name Technical Index
Rated Reclaiming Capacity 600t/h Total Installed Power 110kW
Belt Width 1200mm Diameter of Screw Reclaiming Head 800mm
Length of Screw Reclaiming Head 2600mm Bearing Capacity of Traveling Chassis 30t
Max Operation Inclination Angle ≤17.53° Control Mode PLC Frequency Conversion Control + Wireless Remote Control
Hydraulic System Power 30kW Travel Mode Crawler Traveling

Technical Parameters of Key Components

  1. Screw Reclaiming Head: Model φ800×2600mm, NM500 wear-resistant steel. Diameter: 800mm, effective length: 2400mm, 1 set, matched with φ800mm screw boom.
  2. Screw Drive Motor Reducer Unit: 30kW (equipped with KA reducer), 2 sets. Each set includes a 30kW motor and KA reducer.
  3. Conveyor Drive Motor Reducer Unit: 15kW matching reducer, 2 sets. Each set adopts a 18.5kW motor matched with reducer.

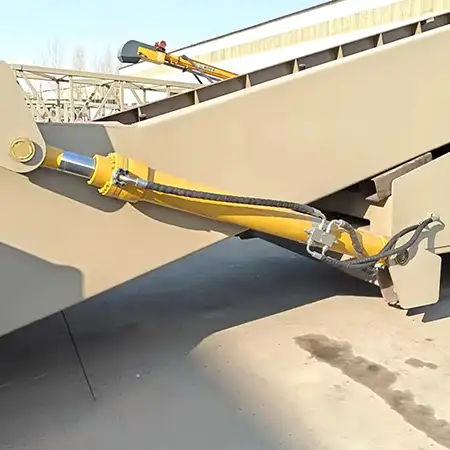

  4. Hydraulic Lifting Cylinders: 2 pcs screw lifting cylinders and 2 pcs conveyor lifting cylinders, separately controlling the lifting of reclaiming head and conveyor.
  5. Crawler Travel Chassis: Model 5200-500, 30t bearing capacity, 1 set, serving as the overall traveling and bearing structure.
  6. Control System: PLC frequency conversion control cabinet with built-in PLC frequency conversion modules for integrated equipment control. Main brands: Schneider + Siemens, equipped with wireless remote controller.

Overall Equipment Structure & Component Description

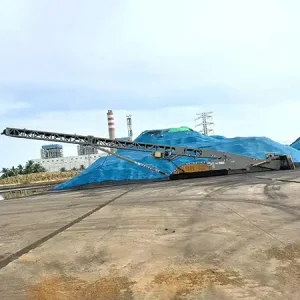

Self-feeding truck loading mobile conveyor

The equipment contains 22 core components divided into six functional modules. All components comply with the specifications, quantities and brands specified in the equipment list.

3.1 Screw Reclaiming Mechanism

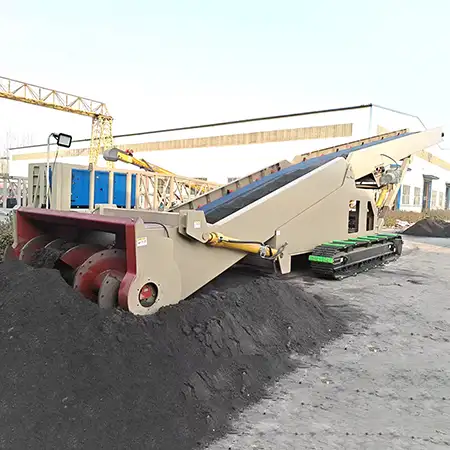

As the core material intake assembly, the screw reclaiming mechanism grabs materials from stockpiles and conveys them to the belt conveyor. It is composed of screw reclaiming head, screw drive motor reducer unit, screw lifting cylinders and screw boom.

3.2 Belt Conveying Mechanism

This mechanism transports materials delivered by the screw head to designated discharge points, consisting of conveyor lifting cylinders, conveyor drive motor reducer unit, conveyor belt, roller sets, drum sets, conveyor frame and primary belt cleaner.

3.3 Traveling Bearing Mechanism

The traveling bearing system serves as the moving and supporting foundation of the whole machine, including 30t crawler chassis and main frame, ensuring flexible mobility and stable load-bearing.

3.4 Hydraulic System

Hydraulic System (XS-L10-017): Rated power 30kW, 1 set. It supplies power to all lifting cylinders (screw lifting & conveyor lifting), controlling cylinder extension and retraction to adjust reclaiming head and conveyor height. The system features stable pressure, adjustable flow and modular layout for easy maintenance and troubleshooting.

3.5 Control System

Regarded as the “brain” of the machine, the control system includes PLC frequency conversion cabinet and wireless remote controller, adopting Schneider + Siemens core components to realize automatic and remote high-precision operation.

3.6 Safety Protection System

The safety protection system eliminates potential operation risks, composed of sound-light alarm and safety components (emergency stop, belt deviation switches, sensors).

4. Equipment Working Principle

Self-feeding truck loading mobile conveyor

The self-feeding conveyor combines screw conveying and belt conveying technologies. Through coordinated control of hydraulic and electrical systems, continuous material intake and transportation can be realized. The complete workflow is as follows:

  1. Positioning by Traveling: Operators control the crawler chassis via wireless remote controller to move the machine to the designated working position beside material stockpiles.
  2. Height Adjustment: Remote control signals are transmitted to the PLC system to drive the hydraulic unit. The screw and conveyor lifting cylinders extend or retract to adjust the insertion depth of reclaiming head and discharge height of conveyor belt according to stockpile conditions.
  3. Reclaiming Operation: Start the screw drive motor reducer unit to rotate the reclaiming head. Spiral blades scoop bulk materials and transport them axially to the feeding inlet of the belt conveyor.
  4. Material Conveying: Synchronously activate the conveyor drive unit to run the belt. Materials falling onto the belt are transported to the discharge head for material output.
  5. Intelligent Control & Safety Protection: During operation, the PLC cabinet continuously collects real-time operation data and adjusts motor speed via frequency modules to precisely control reclaiming and conveying capacity. Meanwhile, sensors and deviation switches monitor equipment status round the clock. In case of overload, deviation or breakdown, the sound-light alarm activates, and the PLC system automatically slows down or shuts down the machine for protection. Operators can also trigger manual emergency stop via the emergency button.
