Product Introduction

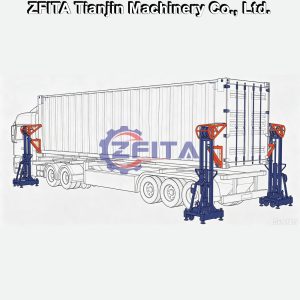

High-Capacity Container Lifting Jacks

With a super 45,000 kg lift capacity, the Container Lift jack is the world’s most powerful container lifting system. Your fast, safe solution for lifting heavy containers on and off truck trailers.

A Heavy Container Handling Machine even no need any forklift

With the fully automated Container Lift jack, all you need is a labor to transfer the heaviest containers between a chassis and the ground. Even with hands, you can set up, the process is fast, safe and easy, with just one operator and no physical effort required.

Compatible with both standard and high cube containers, you can use our ZFITA container lift jack as your primary container lift system, or pair it with an empty container handler to move and stack empties AND lift fully loaded containers on and off chassis.

Product Highlights

Max. Lift Capacity Of 45,000 kg
Each jack leg has a working load limit of 10,000 kg, giving you a total working load limit of 40 tonne. Our new upgrade option available to increasethe working load limit to 45,000 kg(99,000 lbs)

Compact Storage Footprint
The four jacks stand upright and occupyless than 4 ㎡ or 40 square feet of floorspace in your yard, factory or warehouse. Multiple forklift pockets allow the jacks tobe handled, attached and removed from the rear or the sides.

Runs Off Three-Phase Power Supply
Our jack system runs off 380VAC, three-phase, 50Hz power supply (400-440V Voltage and 60HZ frequency is also customized). Typical power sourcesare your mains supply or a portablegenerator. Electric cables daisy chain around three sides of the container and connect to the power packs on each jack.

Height Adjustable For High-Cube Containers
Our ZFITA container lift jacks works with all ISO container heights and lengths. The top bracket is height adjustable for fitting to standard
containers and high cubes.

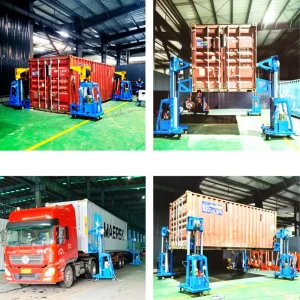

Main Application Scenarios

1. Raw material feeding and finished product shipment via containers in processing factories
2. Container temporary storage, cargo repacking and transshipment in warehouses
3. Container self-handling services for medium & small logistics fleets
4. Bulk solid material loading and unloading operations for ground-placed containers
5. Low-frequency container handling tasks for enterprises with moderate container throughput

	Advantage	Key Description of Portable Container Lifter (For Container Loading & Unloading from Truck)
1	Synchronized 4-corner lifting for maximum safety	Four lifting units rise and fall synchronously, evenly bearing load on container corner castings to avoid tilt, deformation and falling accidents. Hydraulic + mechanical double self-locking ensures stable positioning at any height.
2	Significant cost savings with superior economy	No fixed civil construction or high-cost operator certifications required. Procurement, maintenance and energy costs are only a fraction of conventional handling equipment, effectively cutting long-term logistics costs.
3	Flexible layout & broad applicability	Compact movable design allows quick setup in yards, workshops, warehouses and temporary sites with no space restrictions. Compatible with standard truck containers for bulk filling, discharging and cargo sorting.
4	Easy operation & higher working efficiency	Integrated hydraulic system with intuitive operation. Full workflow – lifting off truck → ground cargo handling → reinstalling onto truck – completed seamlessly, accelerating container turnover.

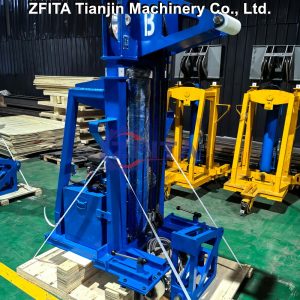

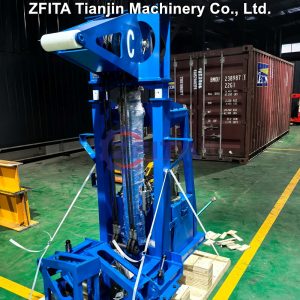

Main Configuration and Technical Parameters

Item	Specifications
Equipment Dimension	Height: 2200mm × Width: 1450mm × Length: 1200mm
Equipment Weight	850kg / unit
Handling Method	Can be moved by forklift or manual pushing
Applicable Container Types	General & bulk containers Reefer / insulated containers Flat rack & open top containers Energy storage containers Livestock containers Tank containers Suitable for both 20ft and 40ft containers
Electrical Control System	Operation control system & quick cable set: 1 set Hydraulic power supply voltage: 380V±5% / 50Hz Control cabinet voltage: 24V DC Operation control mode: Wireless remote control Motors: 4 units in total
Hydraulic Lifting System	Load capacity: Total load ≤ 40T Rated (max.) pressure: 16 (20) MPa Stroke: Max. lifting height 1750mm Hydraulic cylinders: 4 pcs Hydraulic power station tanks: 4 sets Steel wire rope: Φ16mm, 8 pieces in total
